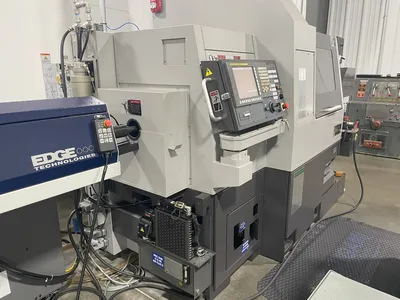

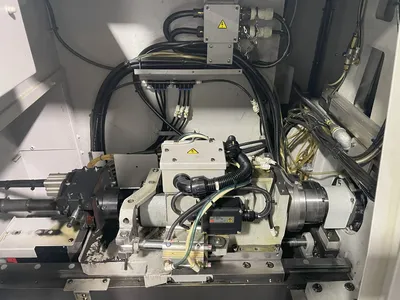

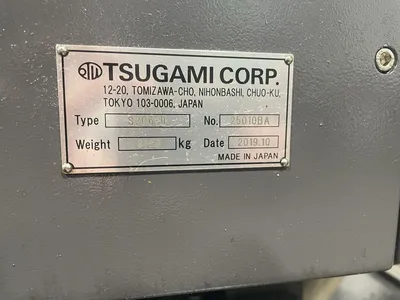

Tsugami S206-II CNC Swiss Lathe, New in 2019 | IH 605419

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Machine Capacity, Machining Range
Controlled Axes: X1, Z1, Y1, Y2, X2, Z2, C1, C2
Working Bar Stock Diameter: φ3 to φ20 mm (0.11" - 0.75")
Machining Length: 210 mm (8.26") （direct-drive rotary guide bushing
250 mm (9.84") （stationary guide bushing)
80 mm (3.1")（carrier type rotary guide bushing）
45 mm (1.77")（guide-bushingless）
Main Spindle Drilling Diameter: 12mm (1/2")
Main Spindle Tapping Diameter: M10
Deep Hole Drilling Diameter: 8mm (0.31")
Back Spindle Chucking Diameter: 20mm (0.75"
Back Spindle Drilling Diameter: 12mm (1/2")
Back Spindle Tapping Diameter M10
Cross Drilling Diameter: 8mm (0.31") (Front tool post/Rear tool post/Back tool post)
Cross Tapping Diameter: M6 (Front tool post/Rear tool post/Back tool post)
Tool Spindle Slotting Cutter Diameter: 30mm (1.18") （T04）

Machine
Main Spindle Speed: 200 to 10,000 min-1
Back Spindle Speed: 200 to 10,000 min-1　＊1
Rotary Guide Bushing Speed (＊2): 200 to 10,000 min-1（ Direct-drive）
Tool Spindle Speed: Cross tool spindle on front tool post: 200 to 10,000 min-1
Rear drive / Back drive: 200 to 8,000 min-1 *3
Total Tool Storage Capacity (Standard/Max): 33/47
Live Tool Positions: 15/24
Tool Size: 12 mm (0.47")
Rapid traverse rate 35 m/min (1377 IPM)（X1,Y1,Y2: 24 m/min）

Machine Motors
Main spindle 2.2/3.7 kW (2.9/4.96 HP)
Back spindle 2.2/3.7 kW (2.9/4.96 HP)
Cross drill 1.0 kW（ Front tool post) (1.34 HP)
1.0 kW（ Rear tool post) (1.34 HP)
1.0 kW（ Back tool post）(1.34 HP)

Power supply
Rotary guide bushing 0.75/1.1 kW (1/1.47 HP) (Direct-drive rotary guide bushing)
X1/Y2-axis 0.5 kW (0.67 HP)
Y1/Z1//X2/Z2-axis 0.75 kW (1 HP)
Coolant pump 0.4 kW (0.53 HP)
Lubricating oil pump 3 W

Power source requirement 12.1 kVA
Compressed air requirement 0.4 MPa or above
Air discharge rate 100 NL/min

Machine Weight: 8,267 lbs
Machine Dimensions: 91" x 50" x 77"

＊1 When the rotary tool beside the back spindle (option) is used, the maximum back spindle speed is restricted to 8,000 min-1
＊2 Optional
＊3 Rated tool spindle speed is 6,800min-1 for front tool post, 5,300min-1 for rear tool post/back tool post.
In case of exceeding the rated spindle speed, the rotation should be limited in the short period of time.
