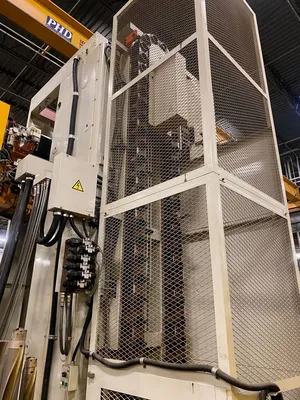

NOMURA HBA135P-R5 HORIZONTAL TABLE TYPE BORING MILL NEW: 2013| MM 862210
$385,000.00 USD
ConditionUsed
1 available
HBA-135 SERIES CNC TABLE TYPE HORIZONTAL BORING AND MILLING MACHINE
FANUC 16 I-MB CNC CONTROL
5.3" SPINDLE DIAMETER
OVERSIZED LARGE DIAMETER BALL SCREWS AND FEED MOTORS
NITRIDED HARDENED, GROUND AND HAND-LAPPED SPINDLE (HRC 67+)
EXTRA-LARGE SPINDLE BEARINGS WITH OIL-MIST COOLING DEVICE
FULL CNC CONTROLLED B AXIS ROTARY TABLE WITH DOUBLE WARM
THREE RANGES OF GEARED-HEADSTOCK WITH 60HP SPINDLE MOTOR (2,930 FT. LBS)
THE BED, THE SADDLE, THE COLUMN AND THE TABLE ARE OF HIGH GRADE FC 300 IRON
ALL THE SLIDEWAYS ARE HARDENED AND GROUND
THE MATING SURFACES ARE COATED WITH A FLUORINE-RESIN AND FORCED LUBRICATED
CHIP CONVEYOR
INSPECT UNDER POWER IN THE USA - ONLY 4,323 CUTTING HOURS
CALL FO PRE-REMOVAL SAVINGS
TRAVELS-
X-AXIS: 118.1”
Y-AXIS: 90.5”
Z-AXIS: 55.1”
SPINDLE DIA.: 5.31”
SPINDLE SPEED: 5 TO 3,000 RPM (3 RANGES)
SPINDLE TRAVEL: 27.5” W-AXIS
TABLE SIZE: 71”X 79”
LOAD CAPACITY: 33,000 LBS
B-AXIS TABLE INDEXING: 0.001 DEGREE
DRIVE MOTOR: 60 HP
TOOL CHANGER: 60 POSITION
SPINDLE TAPER: CAT-50
MACHINE HEIGHT: 182"
REGUIRED FLOOR SPACE: 265" X 285"
APPROXIMATE MACHINE WEIGHT: 88,2000 LBS
