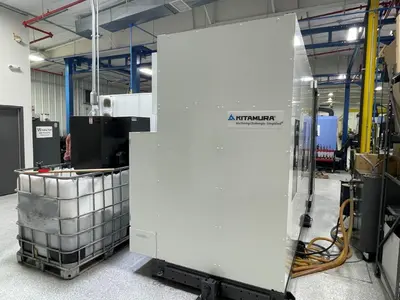

KITAMURA SUPERCELL 300G 5 AXIS CNC HORIZONTAL MACHINING CENTER NEW: 2021 | JS 859020
ConditionUsed
1 available
ARUMATIK-MI HIGH SPEED HIGH ACCURACY CNC CONTROL
5 AXIS SIMULTANEOUS CONTROL
230 TOOL MATRIX STYLE ATC
COOLANT THROUGH SPINDLE
MP SYSTEMS AT VR8 1000 PSI, 8 GPM HIGH PRESSURE PUMP
COOLANT CHILLER
TOOL PRESETTER PACKAGE “E”
TOOL LENGTH & DIAMETER MEASUREMENT
TOOL LENGTH & DIAMETER OFFSET COMPENSATION
CUTTER BREAKAGE DETECTION
TOOL LIFE MANAGEMENT
SPARE TOOL SELECTION
RENISHAW NC-4 LASER PROBE
LNS FOX WS2 330 MIST COLLECTOR
5120 METERS MEMORY (2MB)
HEIDENHIN LINEAR SCALE FEEDBACK (X,Y,Z)
HAND SCRAPED CONTACT SURFACES
20,000 RPM DIRECT SPINDLE - DUAL CONTACT
DOUBLE DECKER STYLE CHIP CONVEYOR AND FILTRATION SYSTEM
BALLSCREW COOLING
ADVANCED 5 AXIS NC SIMULATION & VERIFICATION SOFTWARE
ANYWHERE REMOTE (STATUS UPDATES)
SUPER SMOOTH SURFACE CONTROL
BASE WASH & OVERHEAD SHOWER COOLANT
SUPER SMOOTH SURFACE (SSS) CONTROL
DATA SERVER - 8GB
8190 BLOCK LOOK-AHEAD CONTROL HIGH SPEED ACCURACY CONTROL
**MACHINE INSTALLED NEW IN 2021**
NUMBER OF PALLETS: 20
TABLE SIZE: 7.9" DIAMETER
WEIGHT ON TABLE: 44 LBS.
SPINDLE NOSE TO TABLE: -3.9" - 16.1"
SPINDLE SPEEDS: 20,000 RPM
SPINDLE HORSE-POWER: 20 HP
SPINDLE TAPER: 40 CT
X - AXIS TRAVEL: 18.1"
Y - AXIS TRAVEL: 20.1"
Z - AXIS TRAVEL: 18.1"
A - AXIS TRAVEL: -120 TO +30 DEGREES
B - AXIS TRAVEL: 360 DEGREES
RAPID TRAVERSE X, Y, Z: 2362 IPM
CUTTING FEED RATE: 2362 IPM
AUTOMATIC TOOL CHANGER 230 ATC
TOOL DIAMETER: 3.7" / 5.9"
TOOL LENGTH: 13.7"
TOOL WEIGHT: 22 LBS.
MACHINE WEIGHT: 33,040 LBS.
