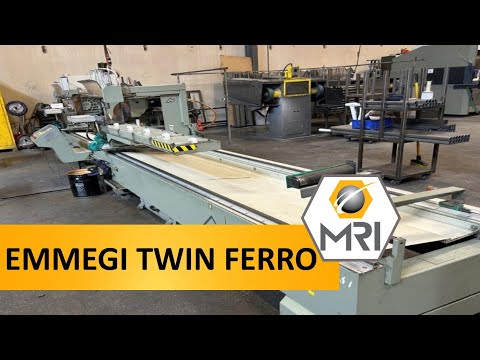

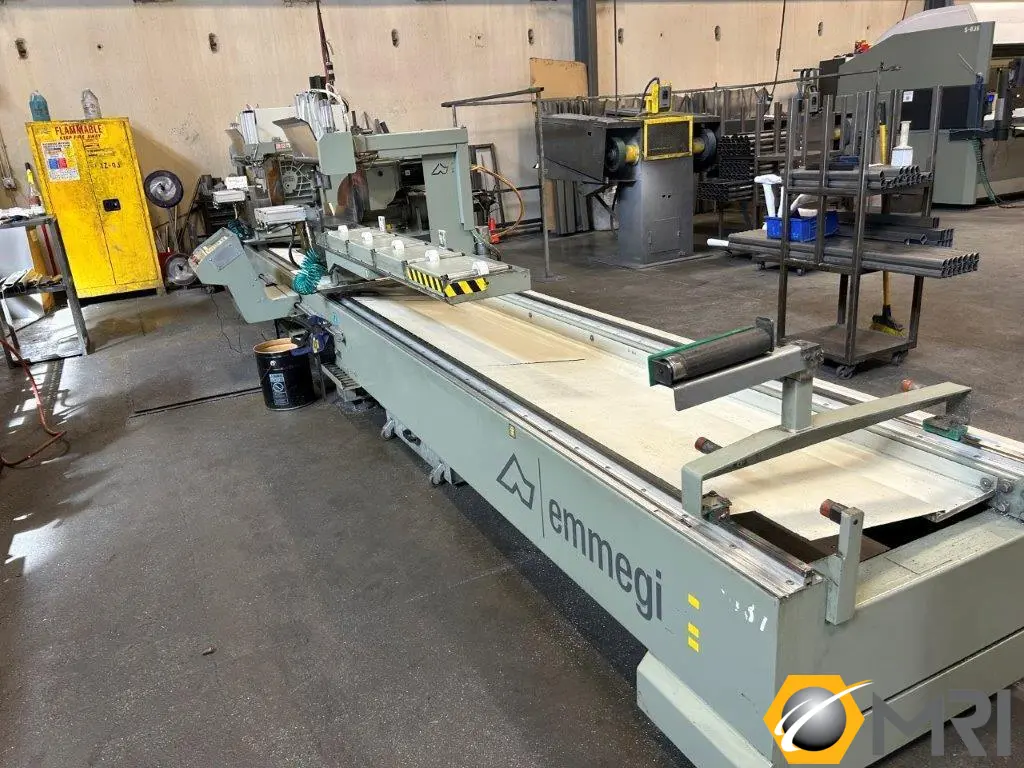

EMMEGI TWIN FERRO MITERING COLD & CARBIDE SAW NEW: 2019
$49,500.00 USD
ConditionUsed
1 available
EMMEGI TWIN FERRO MITERING COLD & CARBIDE SAW NEW: 2019
"WINDOWS" COMPATIBLE INDUSTRIAL COMPUTER
PRESETTING FOR CONNECTION WITH REMOTE PC VIA USB, NETWORK OR SERIAL (DEPENDING ON VERSION)
EXECUTION OF CYCLIC CUTS FROM CUTTING LISTS AND MACROS
STORAGE OF 500 PROFILE CORRECTIVE VALUES WITH MEASUREMENT AUTOMATIC CALCULATION FOR ANGLED CUTS
STORAGE OF 500 CUTTING LISTS (1,000 ROWS EACH) FROM KEYBOARD
BAR OPTIMISATION
ELECTRONIC CONTROL OF THE X-AXIS
PUSH AUTOMATIC CUT WITH VARIABLE ANGLES AND LENGTHS
ELECTRONIC PROFILE THICKNESS GAUGE
BLADE LUBRICATION SYSTEM WITH MINIMUM QUANTITY OIL LUBRICATION
CONTINUOUS WATER LUBRICATION SYSTEM
TWO-POLE BLADE MOTOR
BRUSHLESS BLADE MOTOR + DRIVE
ROLLER CONVEYORS:
X-AXIS POSITIONING SPEED: 20 M/MIN
BLADE DIAMETER IN HSS: 350 MM
MAXIMUM EXTERNAL INCLINATION: 45 DEG.
MAX. MACHINABLE LENGTH: 5,200 MM
MINIMUM CUTTING LENGTH AT 90DEG/45DEG WITH EXTRA SOFTWARE: 3,200 MM
ABILITY TO CUT WITH BLADE AT 45DEG (BY USING SPECIFIC COUNTERBLOCKS): 95 x 110 MM
(WITH TWO-POLE BLADE MOTOR):
** TWO-POLE BLADE MOTOR POWER: 0.75 - 1.4 (KW)
** BLADE ROTATION SPEED WITH TWO-POLE BLADE MOTOR: 17 - 34 RPM
** TWO-POLE BLADE MOTOR CUTTING SPEED: 0.3 - 0.6 M/S
(WITH OPTIONAL BRUSHLESS BLADE MOTOR)
** BRUSHLESS BLADE MOTOR POWER: 3.9 KW
** BLADE ROTATION SPEED WITH BRUSHLESS BLADE MOTOR: 15 - 85 RPM
** BRUSHLESS BLADE MOTOR CUTTING SPEED: 0.3 - 1.6 M/S
VERTICAL VICES: 2
HORIZONTAL VICES: 3
