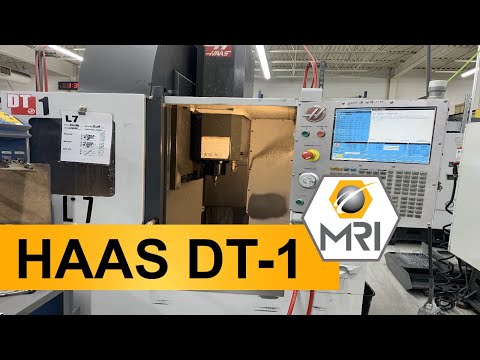

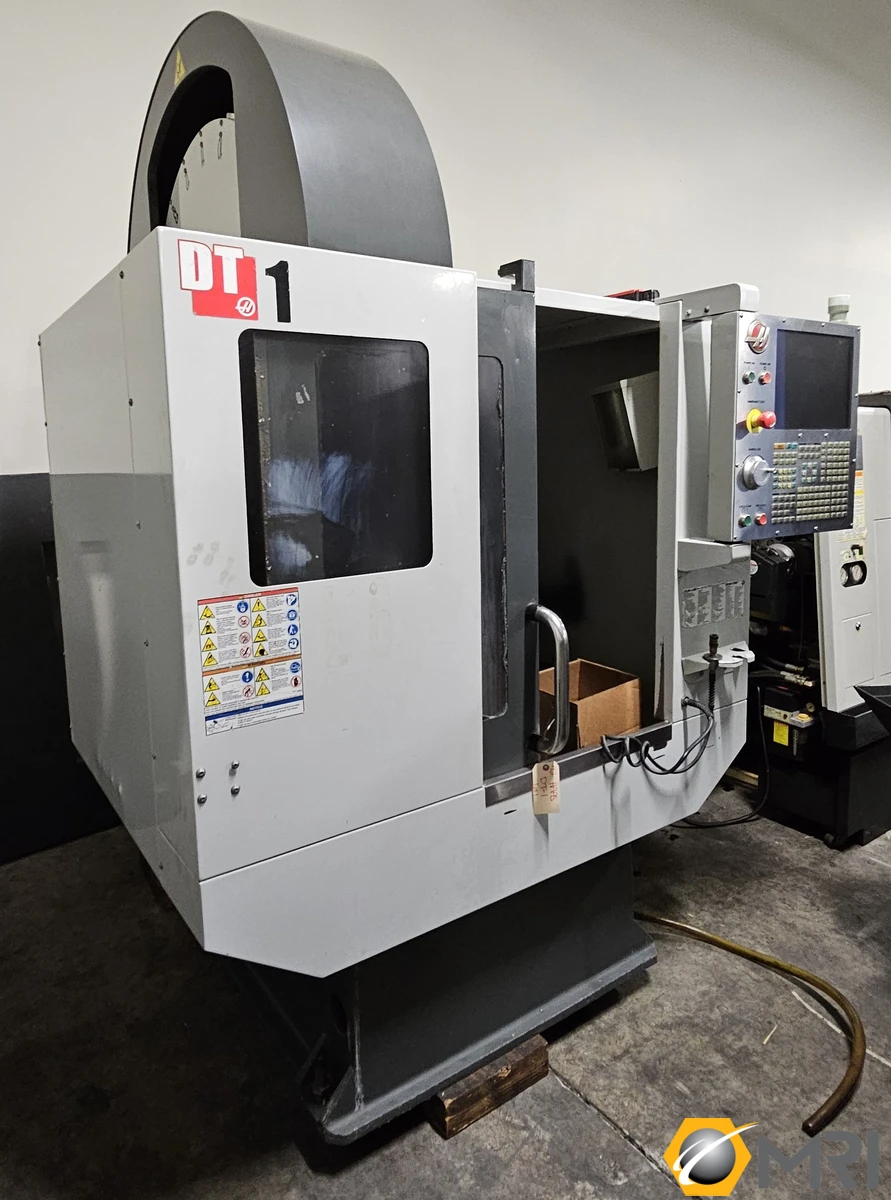

HAAS DT-1 CNC VERTICAL MACHINING CENTER NEW: 2012 | MM 848560

TRAVELS:
X AXIS: 20"
Y AXIS: 16"
Z AXIS: 15.5"

TABLE:
LENGTH: 26"
WIDTH 15"
T-SLOT WIDTH 5/8"
T-SLOT CENTER DISTANCE 4.92"
NUMBER OF STD T-SLOTS 3
MAX. WEIGHT ON TABLE (EVENLY DIST.) 250 LBS.

SPINDLE:
MAX RATING 15 HP
MAX SPEED 12,000 RPM
MAX TORQUE 46 FT-LB@1700 RPM
DRIVE SYSTEM INLINE DIRECT DRIVE
TAPER BT/30
BEARING LUBRICATION AIR/OIL
COOLING AIR

TAPPING:
MAX TAPPING SPEED 5,000 RPM
MAX TAP SIZE (ALUMINUM) 1/2 X 13
FEEDRATES
RAPIDS ON X/Y/Z 2400 IN/MIN
MAX CUTTING 1200 IN/MIN

TOOL CHANGER:
TYPE SMTC
CAPACITY 20+1
MAX TOOL DIAMETER 2.0"
MAX TOOL DIAMETER (ADJACENT EMPTY) 2.0"
MAX TOOL LENGTH 7.0"
CHIP-TO-CHIP (AVG) 1.8 SEC
AIR REQUIRED 4 SCFM, 100 PSI
COOLANT CAPACITY 45 GAL
