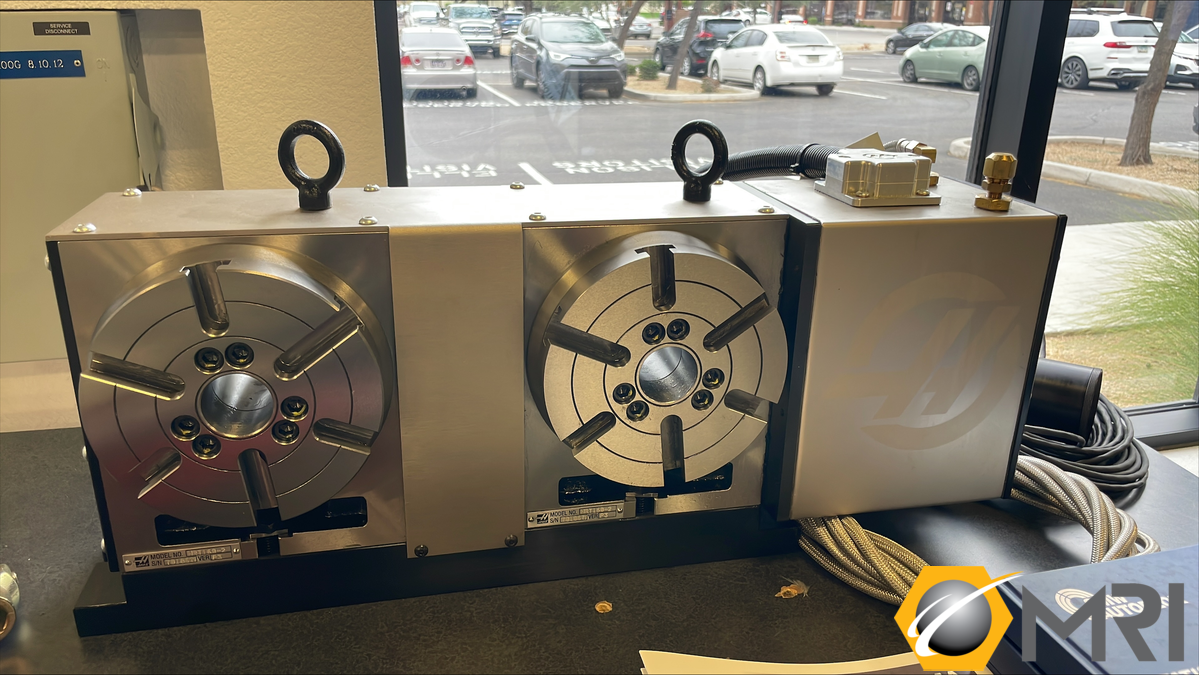

HAAS HRT210-2 DEMO UNIT ROTARY TABLE NEW: 2020 | MM 85192
ConditionUsed
1 available
POWER REQUIREMENT: 115 VAC POSITIVE/NEGATIVE 10PERCENT AT 15 A
OPERATING TEMP (MAX AMBIENT): 100 DEGREE FAHRENHEIT / 38 DEGREE CELSIUS
USED AS A DEMO UNIT ONLY
Platter Diameter 6.30 in 160 mm
Max Weight on Platter (w/support) 70 lb 31.8 kg
Max Weight on Platter (unsupported) 35 lb 15.9 kg
Number of Std T-Slots 6 @ 60° 6 @ 60°
SPINDLE S.A.E METRIC
Number 2 2
Max Speed 80 °/sec 80 °/sec
Max Torque 110 ft-lbf 149 Nm
Runout Max 0.0005 in 0.013 mm
Center Height 6.750 in 171.45 mm
Backlash 30 arc-sec 30 arc-sec
Brake Torque @ 100 psi/6.9 bar 100 ft-lbf 136 Nm
Gear Ratio 63:1 63:1
Timing 2:1 2:1
