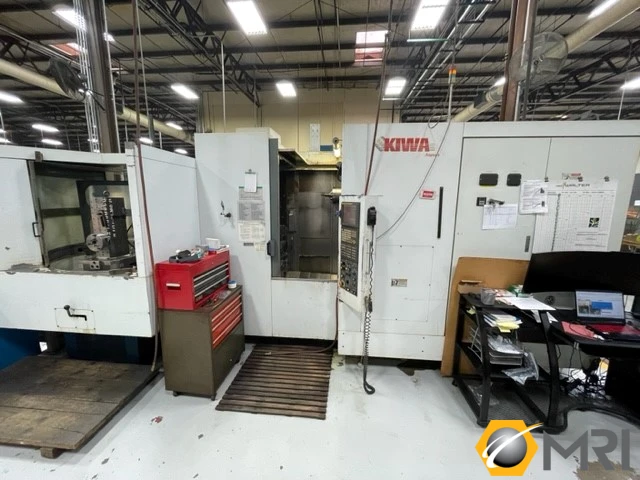

KIWA KNH 426X CNC HORIZONTAL MACHINING CENTER NEW: 2004 | JS 85474

TRAVELS:
X-AXIS: 23.62" (600 MM)
Y-AXIS: 24.02" (610 MM)
Z-AXIS: 26.18" (665 MM)
PALLET SIZE 19.68" X 19.68"
NUMBER OF PALLETS 6
MAXIMUM WEIGHT 881 LBS.
WORKPIECE DIAMETER 24.02"
WORKPIECE HEIGHT 32.0"
SPINDLE TO PALLET CENTER 5.9" - 32.09"
SPINDLE TO PALLET SURFACE 3.15" - 27.27"
B-AXIS (.001DEGREE INCREMENT) FULL ROTARY (STANDARD)
RAPID TRAVERSE 2,362 IPM
SPINDLEL SPEED 12,000 RPM
SPINDLE MOTOR 35 HP
SPINDLE TAPER 40 TAPER
MAGAZINE CAPACITY 64
TOOL CHANGE TIME 1.2 SECONDS
CHIP TO CHIP TIME 4.0 SECONDS 3.6 SECONDS
MAXIMUM TOOL WEIGHT 18 LBS.
MAXIMUM TOOL DIAMETER (ADJ EMPTY) 7.87"
MAXIMUM TOOL LENGTH 14.17"
