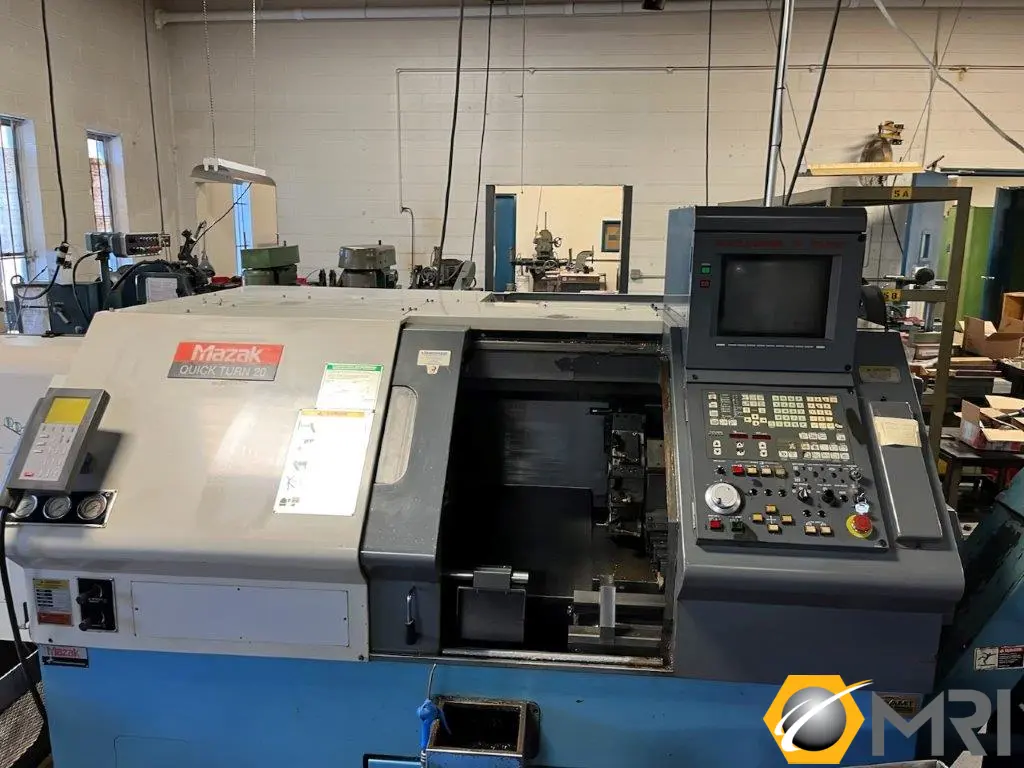

MAZAK QT-20 CNC LATHE NEW: 1997 | JS 84867

Sell Your MAZAK QT-20
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your MAZAK QT-20

Overview

Type:
CNC Lathes (Turning Centers)
Manufacturer:
MAZAK
Model:
QT-20
Year:
1997
Stock #:
848670
Status:
For Sale

MAZATROL T-PLUS CONTROL
CHIP CONVEYOR
3' LNS BARFEED
PARTS CATCHER
8" CHUCK

Swing17.32"439.93 mm
Chuck Size8"203.2 mm
Turning Diameter11.81"299.97 mm
ControlCNC (Mazatrol T-Plus)CNC (Mazatrol T-Plus)

TRAVELS:
-X AXIS: 7.125" / 1200 IPM
-Z AXIS: 20.125" / 1300 IPM

MAX. SWING: 17.32"
SWING OVER CARRIAGE: 10.00"
MAX. CUTTING DIAMETER: 11.81"
MAX. MACHINING LENGTH: 17.50"
SPINDLE SPEED: 50 - 5000 RPM
SPINDLE NOSE: A2-6
SPINDLE BORE: 2.44 IN
NUMBER OF TOOL TURRET POSITIONS: 8
STROKE OF TAILSTOCK BODY: 18.11"
TAILSTOCK CENTER: MT # 4
STROKE OF TAILSTOCK QUILL: 5.12"
SPINDLE DRIVE MOTOR: AC 20 HP
MACHINE WEIGHT: 8,625 LBS
