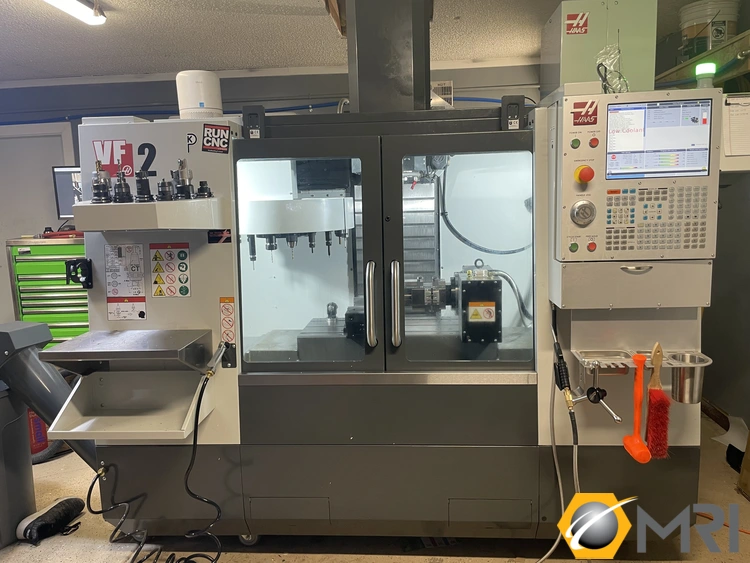

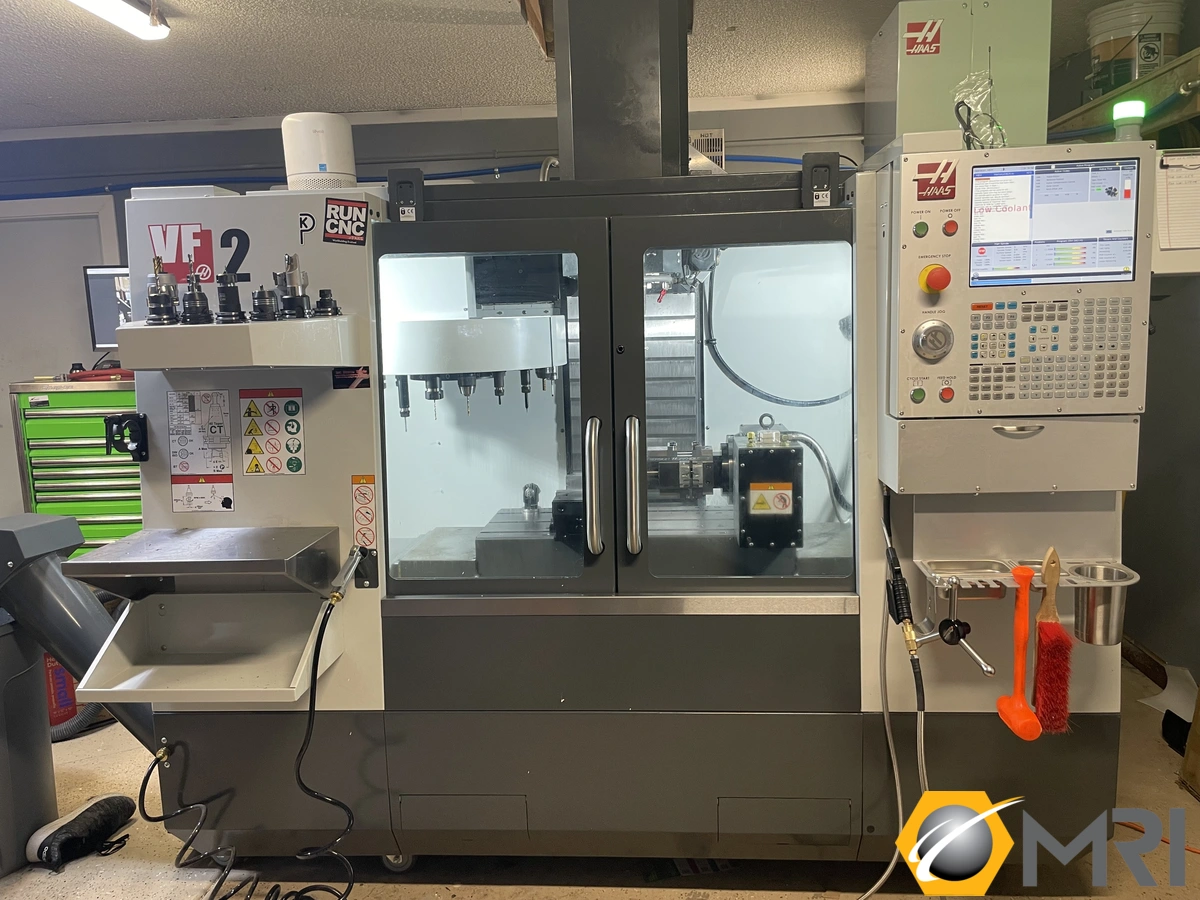

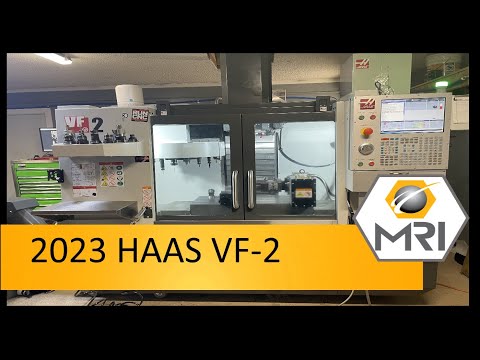

HAAS VF-2 CNC VERTICAL MACHINING CENTER NEW: 2023 | SM 860780
ConditionUsed
1 available
4TH AXIS DRIVE
HRT-210 ROTARY
10,000 RPM
HIGH SPEED MACHINING
THROUGH SPINDLE COOLANT
PROGRAMMABLE COOLANT NOZZLE
WIRELESS INTUITIVE PROBING SYSTEM
COORDINATE ROTATION & SCALING
VISUAL PART PROGRAMMING
SPINDLE ORIENTATION
MACROS
ENCLOSURE EXHAUST SYSTEM
CHIP AUGER
TRAVELS-
X-AXIS: 30"
Y-AXIS: 16"
Z-AXIS: 20"
TABLE SIZE: 36” X 14”
SPINDLE MOTOR: 30 HP
SPINDLE SPEED: 10,000 RPM
SPINDLE TAPER: 40
SPINDLE NOSE TO TABLE MAX: 24”
SPINDLE NOSE TO TABLE MIN: 4”
TOOL CHANGER: 20+1 CAROUSEL
RAPID RATE ALL AXES: 1,000 IPM
MAX TORQUE: 90 FT-LBF
MAX THRUST X: 2550 LBF
MAX THRUST Y: 2550 LBF
MAX THRUST Z: 4200 LBF
