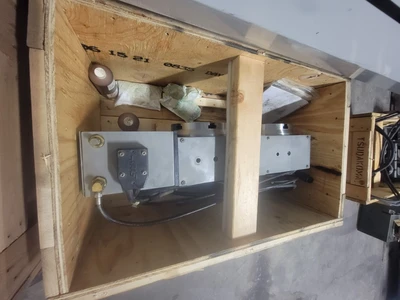

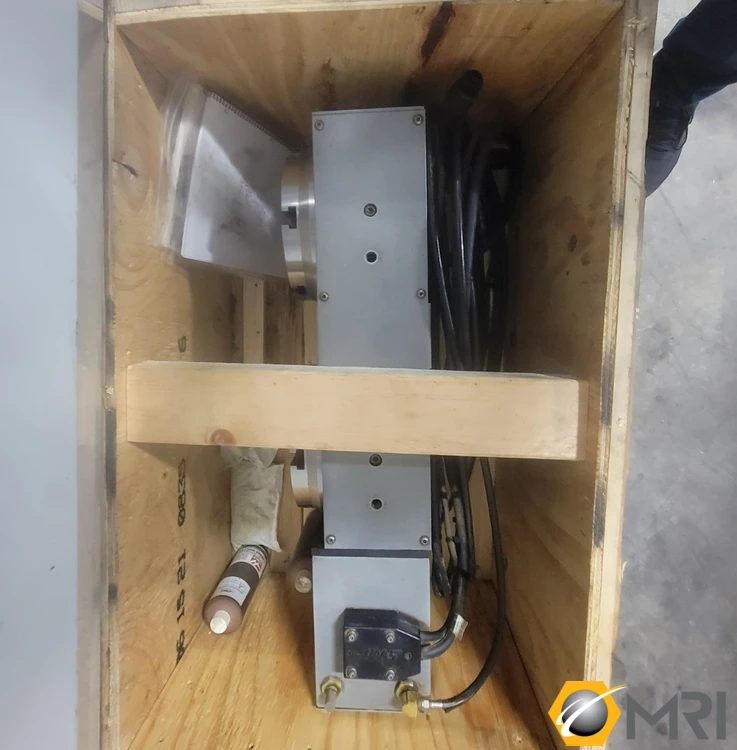

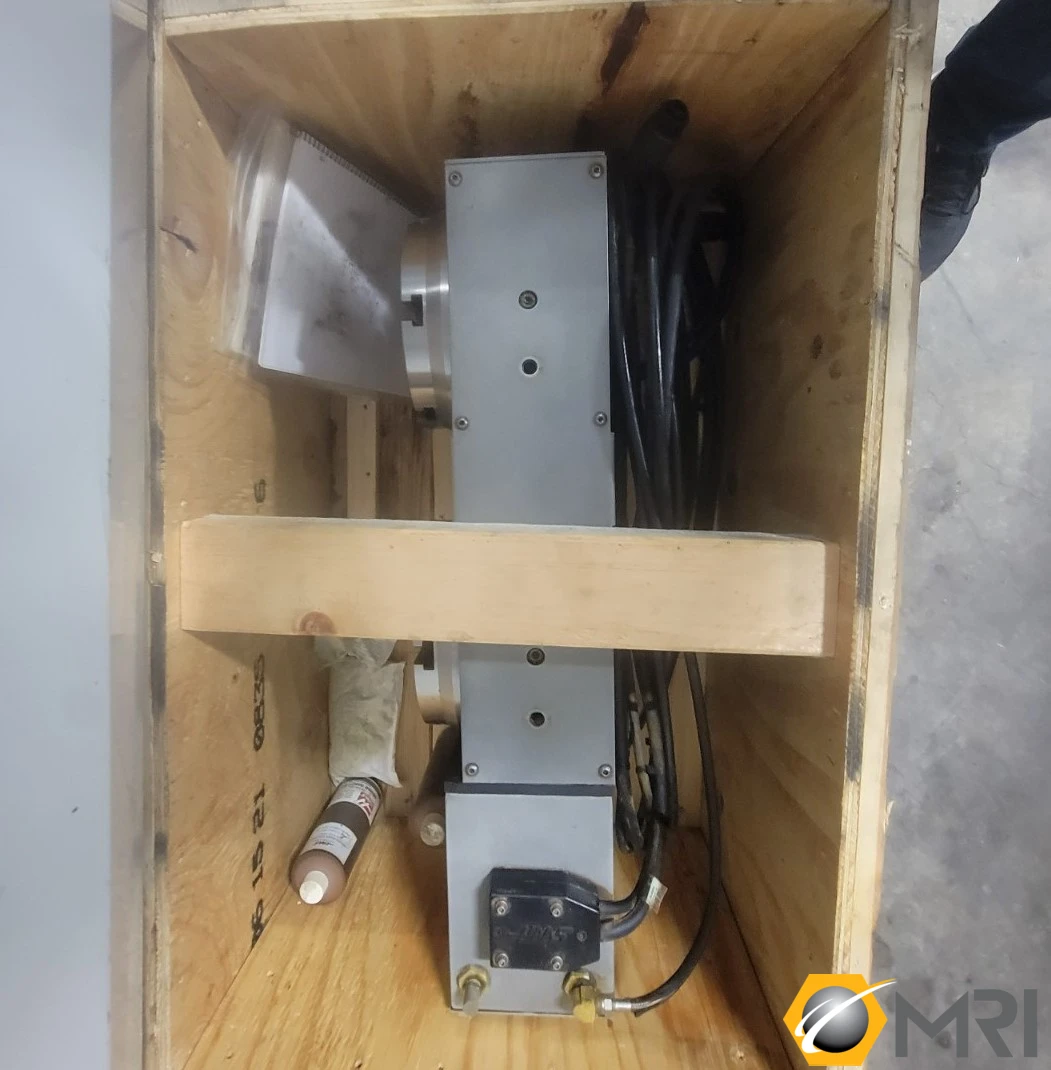

HRT210-2 DUAL-PLATTER 210 ROTARY TABLE NEW: 2007 | JC 841600

PLATTER DIAMETER: 8.30 IN
MAX WEIGHT ON PLATTER (W/SUPPORT): 120LB
MAX WEIGHT ON PLATTER (UNSUPPORTED): 60 LB
NUMBER OF STD T-SLOTS: 6 @ 60 DEGREES

SPINDLE NUMBER: 2
MAX SPEED : 60 DEGREE/SEC
MAX TORQUE: 170 FT-LBF
RUNOUT MAX: 0.0005 IN
CENTER HEIGHT: 7.750 IN
BACKLASH: 30 ARC-SEC
BRAKE TORQUE: @ 100 PSI/6.9 BAR
GEAR RATIO: 90:1
TIMING: 2:1
INDEXING
ACCURACY (+/-): 15 ARC-SEC
REPEATABILIT: 10 ARC-SEC
RESOLUTION: 0.001 DEGREES
WORM GEAR DIA: 6.3 IN
MAX ROTATION/STEP (WITH ROTARY CONTROL): 999.999 DEGREES
GENERAL: S.A.E
POWER REQUIREMENT: 115 VAC +/- 10% @ 15 A
OPERATING TEMP (MAX AMBIENT): 100 DEGREES/F
AIR REQUIREMENTS: S.A.E
AIR PRESSURE MAX: 150 PSI
DIMENSIONS - SHIPPING
EXPORT CRATE: 46 IN X 24 IN X 24 IN
WEIGHT: 440 LB (200.0 KG)
