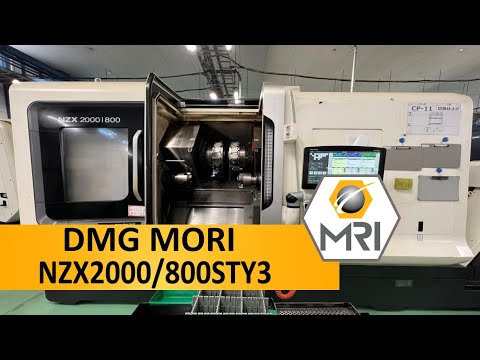

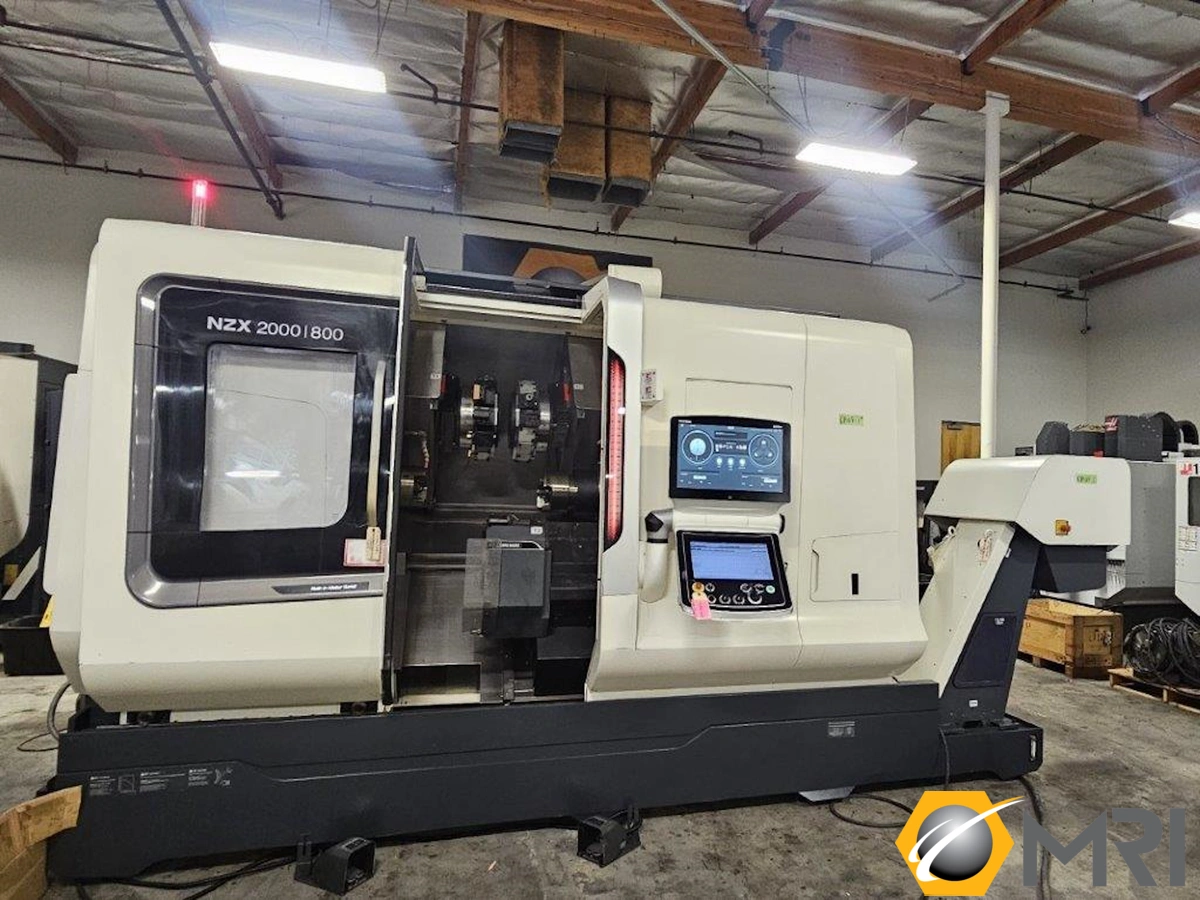

DMG MORI NZX2000/800STY3 CNC LATHE NEW: 2019 | AG 855730
$279,500.00 USD
ConditionUsed
1 available
CELOS (F31IB) CNC CONTROL
21.5" COLOR ERGOLINE TOUCH TFT
TWIN SPINDLES
(3) TURRETS WITH Y-AXIS
6000 RPM MILLING SPEED
COOLANT GUN
CHUCK TOP COOLANT
GEAR SKIVING
GEAR HOBBING F
AIR PURGE (LEFT AND RIGHT SPINDLE)
AIR BLOW FOR TOOL TIP (T1, T2, AND T3)
X-AXIS DIRECT SCALE FEEDBACK (X1, X2, X3)
CHIP CONVEYOR (SIDE EXIT SCRAPER TYPE)
ETHERNET CAPABILITY
TOOL PRESETTER (LEFT AND RIGHT SPINDLE)
(5) EXTERNAL M-CODES
3-D COORDINATE CONVERSION
TOOL RETRACT AND RECOVER
X-AXIS DIRECTION JIS / ISO
C-AXIS HIGH-PRECISION INDEXING
4 COLOR SIGNAL LIGHT
BUILT IN WORK LIGHT
TRAVEL:
-X AXIS: (X1, X2, AND X3) 8.3"
-Y AXIS: (Y1, Y2, AND Y3) 4.3"
-Z AXIS: (Z1/Z2/Z3) 11.8" / 31.9" / 8.3"
SWING OVER BED: 31.5"
CHUCK SIZE: 8" (2)
MAX DIAMETER BAR CAPACITY: 2.5"
SPINDLE MOTOR (LEFT AND RIGHT): 33.3/30 HP
SPINDLE SPEED (LEFT AND RIGHT): 5000 RPM
SPINDLE NOSE: A2-6
SPINDLE BORE: 2.9"
TOOLS: 16 X 3
TURRET INDEX (SINGLE STEP): 0.2 SECONDS
MACHINE DIMENSIONS (L X W X H): 199.3" X 111.6" X 91.3"
MACHINE WEIGHT: 21,120 LBS
LIVE TOOL MOTOR (T1, T2, AND T3): 10/7.5 HP
LIVE TOOL SPEED (T1, T2, AND T3): 12,000 RPM
MAX DISTANCE BETWEEN SPINDLE NOSE: 44.4"
MAX TURNING DIAMETER (MAX/STD): 12.5" / 7.9"
MAX TURNING LENGTH: 31.8"
RIGHT SPINDLE TRAVEL: 34.3"
