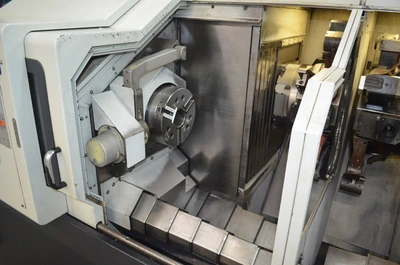

MAZAK 6300Y CNC LATHE NEW: 2009 | IH 860680

TRAVELS L&R-
Y-AXIS: +/- 3.0"
X-AXIS: 12.2"
Z-AXIS: 23.82"
RAPID TRAVERSE-
Y-AXIS: 393 IPM
X-AXIS: 945 IPM
Z-AXIS : 945 IPM
C-AXIS : 400 RPM
CUTTING-
MAXIMUM SWING: 16.93"
STANDARD CUTTING DIAMETER: 13.0"
MAXIMUM CUTTING DIAMETER: 16.93"
MAXIMUM CUTTING LENGTH CHUCKWORK: 8.86"
MAXIMUM CUTTING LENGTH SHAFTWORK: 25.59"
MAIN SPINDLE L&R-
DISTANCE BETWEEN SPINDLE FACES:
MAX.(BOTH HEADS @ HOME POSITION): 57.09"
MIN: 9.82"
SPINDLE NOSE: A2-8
SPINDLE BORE: 3.46"
MAXIMUM BAR DIAMETER: 3.0"
SPINDLE SPEED/RANGES: 4,000 RPM/1
SPINDLE INDEXING (C-AXIS): .001 DEG./360,000 POSITIONS
SPINDLE HORSEPOWER (30 MIN.): 30 HP (AC)
SPINDLE TORQUE: 441.34 FT.-LBS.
MILL SPINDLE L&R-
SPINDLE SPEED: 4,000 RPM
SPINDLE HORSEPOWER (10 MIN): 10 HP (A.C.)
SPINDLE TORQUE (4000 RPM): 57.88 FT.-LBS.
SPINDLE TORQUE (2000 RPM OPTION): 72.34 FT.-LBS.
MAXIMUM DRILL: 7/8"
MAXIMUM END MILL: 13/16"
MAXIMUM TAP: 8-5/8 UNC
TURRET L&R-
TYPE OF TURRETS: DODECAGONAL/DRUM NON-LIFT
TOOL HOLDER SHANKS: MODIFIED VDI
TURRET INDEX TIME (1 STEP): 0.3 SEC.
TOTAL NUMBER OF TOOLS:
ROTARY AVAIL./ALL POSITIONS: 24 (12X2)
TOOL SIZE-
TURNING & FACING: 1" X 1"
BORING BAR MAXIMUM DIAMETER: 2"
MACHINE-
MACHINE FLOOR SPACE (W X L):
W/O AUTOMATION OR BAR FEEDER, ETC: 95.3" X 167.7"
MACHINE HEIGHT: 85.44"
TOTAL POWER REQUIRED (MACHINE ONLY): 76 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER KVA RATING WILL BE GREATER
AIR REQUIREMENTS: 71 PSI / 14 CFM
TOTAL WEIGHT (FOR MACHINE ONLY): 26,400 LBS.
