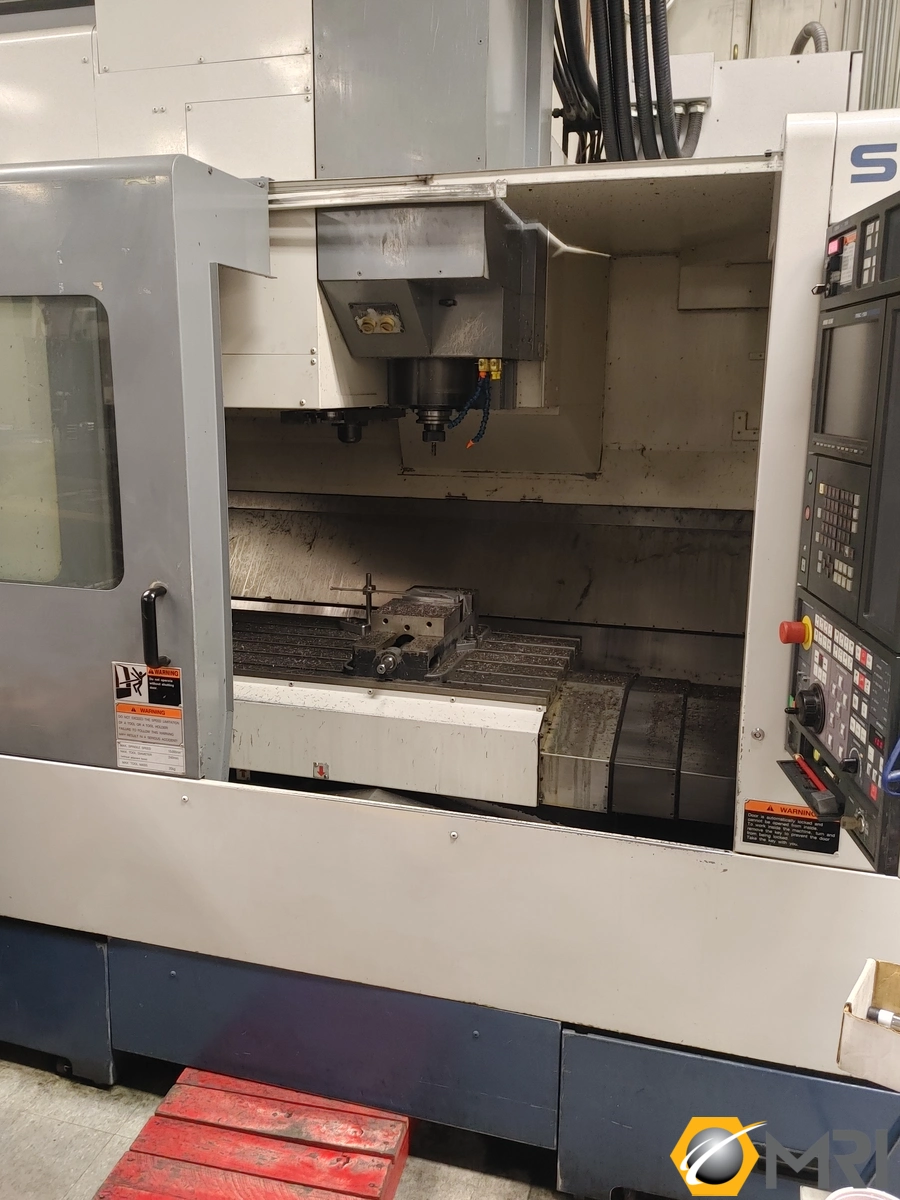

MORI SEIKI CNC VERTICAL MACHINIG CENTER NEW:1999 | JC 85284
ConditionUsed
1 available
30 STATION SIDE MOUNTED TOOL CHANGER
CHIP CONVEYOR
RIGID TAPPING
RS 232 PORT INTERFACE
OIL COOLER
AUTO POWER OFF SYSTEM
COOLANT SYSTEM
FULL ENCLOSURE
TRAVELS:
X-AXIS: 40"
Y-AXIS: 20.1"
Z-AXIS: 20.1"
TABLE SIZE 43.3" X 23.6"
TABLE LOAD CAPACITY 2,200 LBS.
TOOL MAGAZINE CAPACITY 30 POSITION ATC
TOOL CHANGE TIME-CHIP TO CHIP 3.1 SECONDS
MAX. TOOL DIAMETER / LENGTH 4.9" / 11.8"
SPINDLE TAPER BT #50 TAPER
SPINDLE MOTOR 30 MIN. / CONT. 30 / 25 HP
SPINDLE SPEED 10,000 RPM
TABLETOP TO SPINDLE NOSE 5.9" - 26"
RAPID TRAVERSE RATES 1259 IPM
MACHINE DIMENSIONS 102" X 93" X 113"
MACHINE WEIGHT 17,120 LBS.
