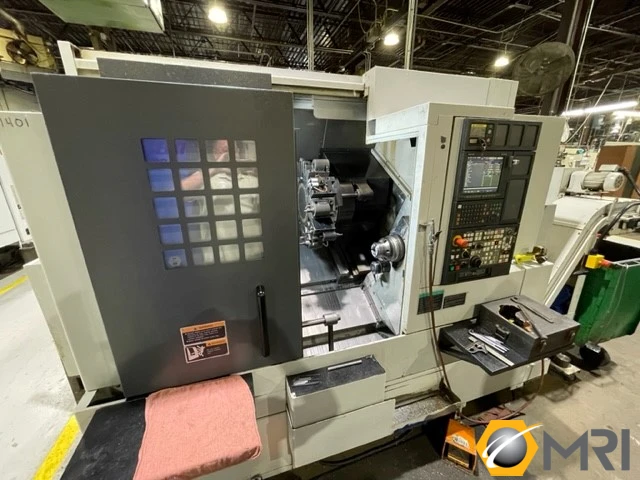

MORI SEIKI NL-2000S CNC LATHE NEW: 2008 | JS 86111
ConditionUsed
1 available
MSX-850 III CNC CONTROL W/ MAPPS
COLLET CHUCK ON MAIN AND SUB SPINDLE
CHIP CONVEYOR
PARTS CATCHER
ALL AVAILABLE TOOLING
BAR CAPACITY:2"
CHUCK SIZE:(MAIN) 8" & (SUB) 6"
SPINDLE SPEED:(MAIN ) 5,000 RPM / (SUB) 6,000 RPM
SPINDLE MOTOR:20/15 HP
X AXIS TRAVEL:10.2"
Z AXIS TRAVEL:23.3"
RAPID RATE Z AXIS:1,181 IPM
TURRET TOOLS:12 STATION
RAPID RATE X AXIS:1,181 IPM
MAX TURNING DIA:14"
MAX TURNING LENGTH:20"
MAX SWING:36.4"
DIMENSIONS:134" X 76" X 84"
WEIGHT:13,000 LBS
