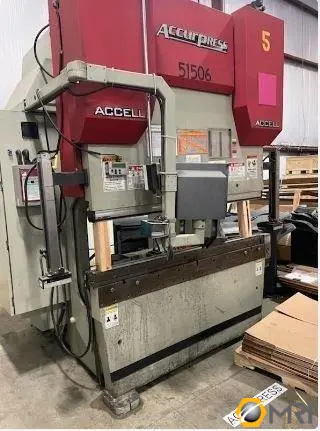

ACCURPRESS ACCELL U 51506 CNC PRESS BRAKE, NEW: 2008

MAX. TONNAGE: 150
MAX. BENDING LENGTH: 72"
DISTANCE BETWEEN FRAMES: 58"
BED HEIGHT: 34"
TOP BED WIDTH: 4.5"
RAM OPEN HEIGHT: 22"
RAM CLOSED HEIGHT: 8"
STROKE LENGTH: 14"
THROAT DEPTH: 12"
SPEEDS:
- APPROACH: 490 IPM
- BEND: 24-48 IPM
- RETURN: 320 IPM
BACK-GAUGE SPECS:
- X-AXIS
-- TRAVEL: 39"
-- POSITIONING SPEED: 1,500 IPM
-- REPEATABILITY: (+/-) 0.001"
- R-AXIS:
-- TRAVEL: 10"
-- POSITIONING SPEED: 1,500 IPM
-- REPEATABILITY: (+/-) 0.001"
- Z-AXIS:
- TRAVEL: 40"
-- POSITIONING SPEED: 1,500 IPM
-- REPEATABILITY: (+/-) 0.002"
APPROX. DIMENSIONS: 91"(L) x 80"(W) x 78"(H)
APPROX. WEIGHT: 18,000 LBS
