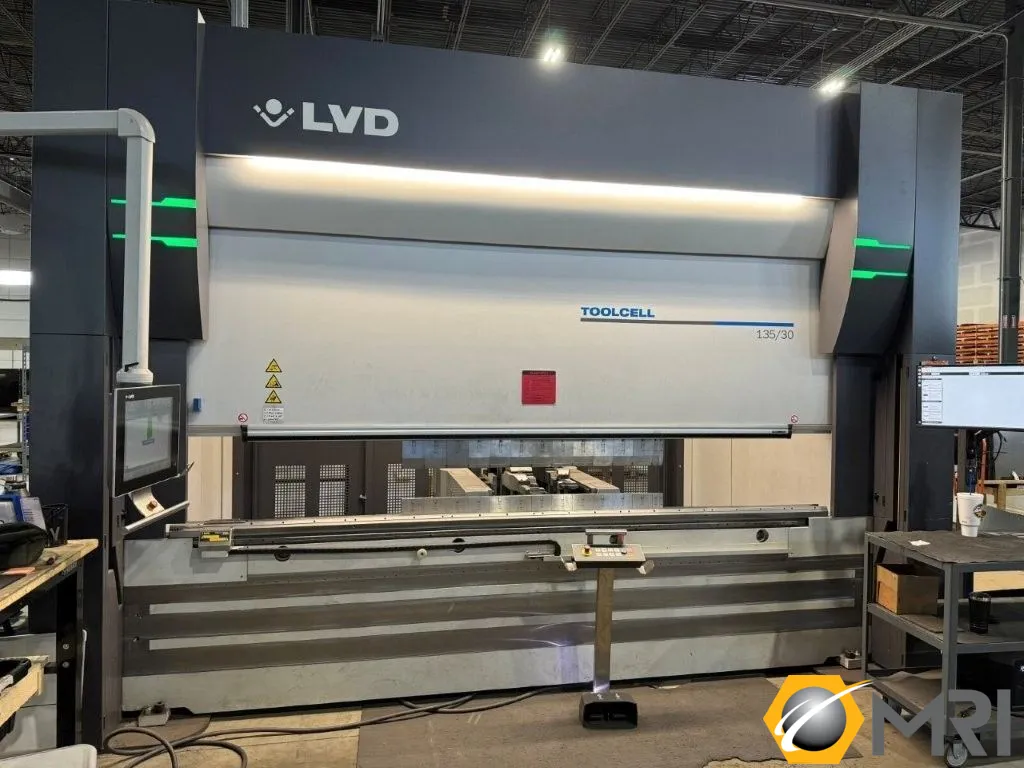

LVD TOOLCELL 135/30 CNC PRESS BRAKE WITH TOOLING WAREHOUSE AND AUTO TOOL CHANGER, NEW: 2023
$299,500.00 USD
ConditionUsed
1 available
LVD TOOLCELL 135/30 CNC PRESS BRAKE WITH TOOLING WAREHOUSE AND AUTO TOOL CHANGER
TONNAGE: 150
WORKING LENGTH: 120"
NEW: 2023
LVD EASY-FORM LASER SYSTEM
6-AXIS PROGRAMMABLE BACK-GAUGE
AUTOMATIC TOOL CHANGER
INTELLIGENT TOOLING WAREHOUSE
VARIABLE FRQUENCY DRIVE
TOOLING:
- PUNCHES:
- - TC00009 159MM H 1MM R ACUTE STRAIGHT
- - TC00001 159MM H 1MM R SWAN NECK
- DIES:
- - TC00083 90MM H 8MM R
- - TC00087 90MM H 10MM R
- - TC00091 90MM H 12MM R
- - TC00099 90MM H 16MM R
- - TC00111 90MM H 24MM R
- - TC00129 90MM H 40MM R
HOURS AS OF 2/10/25:
- POWER ON: 6337
- PUMP RUNNING: 5520
MAX. TONNAGE: 150
PRESSURE: 290 BAR
WORKING LENGTH: 120"
DISTANCE BETWEEN UPRIGHTS:157"
STROKE: 11.8" - 15.7"
DISTANCE TABLE/RAM: 19.6" - 23.6"
TABLE WIDTH: 4.7"
MAX. LOAD TABLE: 78 TPF
WORKING HEIGHT: 38"
SPEEDS:
- APPROACH: 425 IPM
- WORKING: 51 IPM
- RETURN: 472" IPM
MAIN MOTOR: 30 HP
OIL TANK: 66 GALLONS
WEIGHT: 40,789
