Tsugami BO325-II CNC Swiss Lathe, New 2015 | AB 7611601
ConditionUsed
1 available

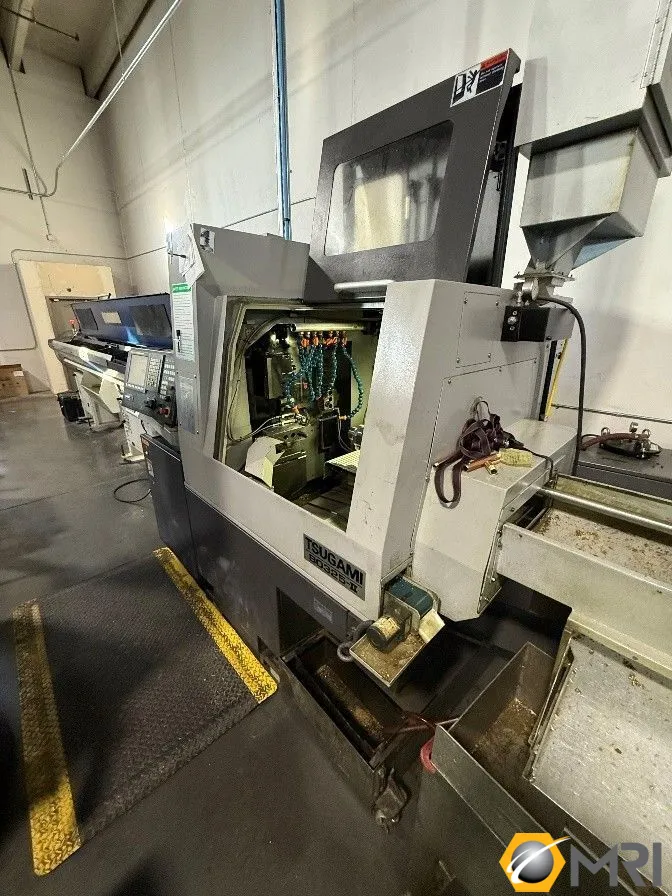

Tsugami BO325-II CNC Swiss Lathe, new in 2015
HPC, Mist Collector, Parts Conveyor, Long Parts Attachment, Chip Conv, Edge Bar Loader
Very quiet machine, what the detailed video - This machine is available for inspection, in Denver
Fanuc Oi-TD Control
Edge Patriot 338 Magazine Barloader, 12' bar length cap
MP Systems V2 High Pressure Coolant System
TriMist 850 G2 Mist Collection System
LNS Turbo Chip Conveyor
Long Parts Attachment
Machine Ran:
- C360 Brass & C230 Red Brass
Only oil ran.
-XTREME CUT 757
Power On: 40,383 hrs
Operating Time: 22,500 hrs apprx (at some point the clock was resent, average run time is 1-1.5 shifts/day)
To the best of our knowledge all details listed below are deemed correct. It
is the buyers responsibility to confirm prior to purchase.
General Machine Specifications per Manufacturer's Brochure
Number of Axes: 5 (X1,Y1,Z1, X2,Z2)
C Axis Optional
Chucking Barstock Diameter: 8 - 32mm (0.31 - 1.25")
Max Machining Length: 320 mm (12.59")
(w// direct Drive Rotary GB)
Max Drilling Diameter: 12 mm (.47")
Max Tapping Diameter: M10
Max Back Spindle Chucking Diameter; 32mm (1.25")
Max Back Spindle Drilling Diameter: 10mm (.39")
Max Back Spindle Tapping Diameter: M8
Max Tool Spindle Drilling Diameter: 8mm (.31")
Max Tool Spindle Tapping Diameter: M6
Max Tool Spindle Slotting Diameter: 45mm (1.77")
Main Spindle Speed: 200 - 8000 rpm
Back Spindle Speed: 200 - 8000 rpm
Rapid Traverse Rate: 32 m/min (X1,Y1,Y2 24 m/min)
Tool Storage Capacity (std/max): 27/39
Stick Tool Size: 16 x 16 x 100mm
Tooling Configuration:
Live Cross Drills: 4
OD Turning Tools: 8
ID Tools (by sub spindle) 2
ID/BW Tools: 5
BW Tools: 4 Fixed
Main Spindle: 3.7 / 5.5 kW
Back Spindle: 2.2 / 3.7 kW
Tool Spindle: 1.0 kW
Rotary Guide Bushing: 1.5 / 3.0 kW
X1: 0.5 kW
Y1, Z1, X2, Z2: 0.75 kW
Coolant Pump: 400 W
Lubricating Pump: 3 W
Power Requirements: 21.4 KVA
Air Requirements: 0.4 MPa or Above
Air Discharge rate: 40 NL/min
Coolant Tank Capacity: 180 L (47.5 gal)
Machine: 104.5" x 57" x 77" 7,500 lbs
