2023 HAAS VF-5SS W/ TRT210

Sell Your HAAS VF-5SS
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your HAAS VF-5SS

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-5SS
Year:
2023
Stock #:
7611639
Status:
For Sale

4TH AXIS
5TH AXIS
THROUGH SPINDLE COOLANT
PROGRAMMABLE COOLANT
WIRELESS INTUITIVE PROBING
COORDINATE ROTATION SCALING
VISUAL PART PROGRAMMING
SPINDLE ORIENTATION
MACROS
HIGH SPEED MACHINING
REMOTE JOG HANDLE
HIGH INTENSITY LIGHTING
DYNAMIC WORK OFFSETS
SECOND HOME POSITION

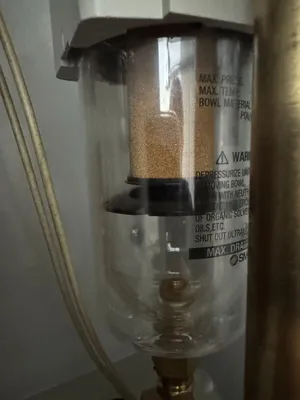

AUXILIARY COOLANT FILTER
32GB MEMORY
CHIP AUGER

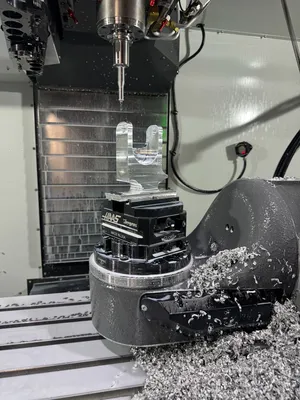

TRT210
-MANUAL AIR CLAMPING PROVISION

X-Axis50"1,270 mm
Y-Axis26"660.4 mm
Z-Axis25"635 mm
# Axis55
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
TaperCT or BT 40CT or BT 40
# ATC2424
Table-W23"584.2 mm
Table-L52"1,320.8 mm
Pallets?NoNo
4th AxisYESYES
ControlCNC (HAAS NEXGEN CNC CONTROL)CNC (HAAS NEXGEN CNC CONTROL)

X Axis Travel: 50"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30+1 SMTC
Max Cutting: 500 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 4100 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 54" x 24"
