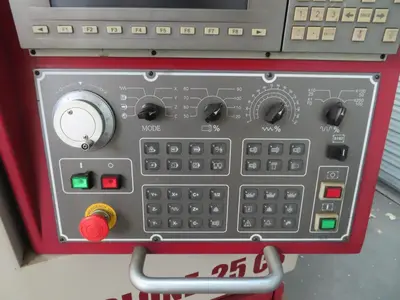

Ganesh Cyclone 32CS CNC Swiss Lathe, New 2005 | IH 7611661

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Main Spindle:
Motor: 10 HP
Spindle Speed: 6,000 RPM
Bar Stock Diameter: 1.25"
X-Axis: 7.28"
Y-Axis: 19.29"
Z-Axis: 6.50"
C-Axis: .001 Degree
Rapid Travel Speed: 1180 IPM
Min. Input Unit: 0.00005"
OD Turning Tool Positions: 6 OD Tools (1/2" or 12mm)
ID Turning Tool Positions: 5 ID Tools
OD Turning Tool Size: 1/2" or 12mm
ID Turning Tool Bore Size: 25mm
Spindle Center Height: 38"

Live Tooling:
Cross Slide: 4 Cross Slide Live Tools
Front Slide: 3 Front Slide Live Tools
Live Tool Collet Size: ER-20 Collet, 1/2" (13mm) Tool Shank

Sub Spindle:
Motor: 5 HP Continuous Duty (7.5 HP Peak)
Max. Bar Stock Diameter: 1.25"
Spindle Speed: 6,000 RPM
X-Axis: 11.53:"
Z-Axis: 11.61"
C-Axis: .001 Degree
Min. Input Unit: .00005"
ID Turning Tool Bore Size: 25mm
Tool Speed: 4,000 RPM
Sub Spindle Tooling: 4 total (2 live)

Main Machine Dimensions (approx.): 99" x 63" x 82" / 8,400 lbs.
Bar Feeder Machine Dimensions (approx.): 78" x 42" x 65" / 600 lbs.
