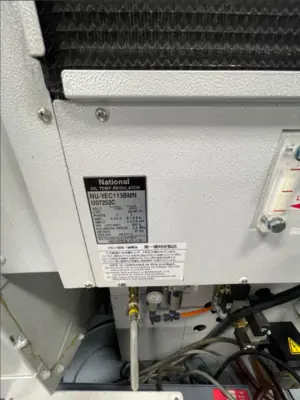

MORI SEIKI NV5000 1A/40 , NEW in 2007

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s)
and accessories prior to purchase.

General Specifications. Direct from OEM Brochure:

Travels
X-axis travel: 800mm (31.5'')
Y-axis travel: 510mm (20.1")
Z-axis travel: 510mm (20.1")
Distance from table surface to spindle gauge plane: 150ー660mm (5.9"ー26.0")

Table
Working surface: 1,100×600mm (43.3"×23.6")
Table loading capacity: 1,000kg (2,200lbs)
Table surface configuration" 18 mm×100 mm×6 (0.7".×3.9".×6)

Spindle
Max. spindle speed: min-1 14,000
Number of spindle speed ranges: 1
Type of spindle taper hole: No. 40
Spindle bearing inner diameter: 65mm (2.6")

Feedrate
Rapid traverse rate: X, Y, Z: 42,000 (1,653.5) mm/min (ipm)
Cutting feedrate: X, Y, Z: 1ー42,000 (0.04ー1,653.5) mm/min (ipm)
Jog feedrate: 0−5,000 (0ー197.0) <20 steps> mm/min (ipm)

ATC
Type of tool shank: BT40＊ [CAT40] [DIN40] [HSK-A63]
Type of retention knob: DMG MORI SEIKI 90˚ type [45゜ ] [60゜] [HSK-A63]
Tool storage capacity: 30 [60] [90]
Max. tool diameter: 80mm (3.1") <125 (4.9)>
Max. tool length: 300mm (11.8")
Max. tool mass: 8kg (17.6lbs) [12 (26.4)]
Max. tool mass moment
N・m (ft・lbf) 11(8.1) <60, 90-tool specifications>
{a tool with a mass moment greater than the maximum tool mass moment may cause problems during ATC operations even if it satisfies
other conditions}
Method of tool selection: Technical memory random
Tool changing time
Tool-to-tool s 1.0/1.5
Cut-to-cut(chip-to-chip): 30 tools
ISO10791-9,
JIS B6336-9 s Max.: 8.8
Min.: 3.1
MAS011 s 2.6
VDI2852 s 2.6
[60 tools]
ISO10791-9,
JIS B6336-9 s Max.: 15.9
Min.: 4.1
● Depending on the arrangement of,tools in the magazine, the Cut-to-cut(chip-to-chip) time may be longer.
● The time differences are caused by thedifferent conditions (travel distances, etc) for each standard.
● For heavy tool specifications , the values may be bigger than
those above.

MAS011 s 3.7
VDI2852 s 3.7 6.8
[90 tools]
ISO10791-9,
JIS B6336-9 s Max.: 21.7
Min.: 4.5
MAS011 s 3.7
VDI2852 s 3.7 13.0

Motor
Spindle drive motor: 22/18.5kW (30/24.7HP)
<30 min/cont>
{high-speed winding side}

Feed motor: kW (HP) X, Y: 3.0 (4) Z: 5.5 (7.5)
Coolant pump motor <50/60 Hz> kW (HP) 0.635＋0.73 (0.84＋0.97)/1.04＋1.21 (1.38＋1.61)
Power source (standard)
Electrical power supplyo: kVA 41.5
Compressed air supply MPa (psi), L/min (gpm) 0.5 (72.5), 200 (52.8) {when the tool tip air blow is regularly used,
air supply of more than 300 L/min (79.2 gpm) is separately required}
Tank capacity Coolant tank capacity: 230L (60.7gal)

Machine size:
Machine height: 2,603mm (102."5)
Floor space: 2,458mm×2,710mm (96.8"×106.7")
Mass of machine: 6,350kg (13,970lbs )
Noise data A-weighted, time-average radiated sound: 60ー77 (Measurement uncertainty is 4 dB)
