Tsugami BH20Z CNC Gang-Turret Swiss Lathe, New in 2008

All specifications must be confirmed by buyer:

General Specifications per Manufaturer's Brochure

Control: Fanuc 31i-B
Axes: X1, Y1, Z1, X2, Z2, X3, Y3, Z3, C1, C2
Working barstock diameter: 3-20mm
Max. machining length 80mm (carrier type GB)
170mm (Direct Drive GB- op)
45mm (GB-less type (op)
Main Spindle
Max Drilling Diameter 10mm
Max Tapping Size M8
Back Spindle
Max Barstock Di: 20mm
Max Drill Diam 10mm
Max Tap Diam: M8
Front Tool Post
Max Cross Drilling Dia: 8mm
Max Cross Tap Diam: M6

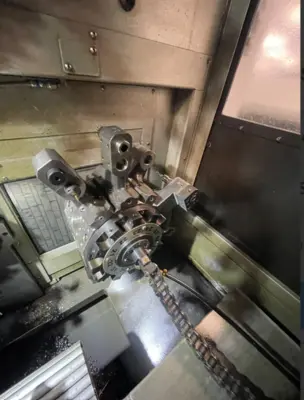

Turret
Max Rotary Tool Drill Dia: 10mm
Max Rotary Tool Tap Dia: M8
Main Spindle Speed: 200-10000 rpm
Back Spindle Speed: 200 - 12000 rpm
Cross Drill Speed - tool post: 200 - 8000 rpm
Rotary tool Speed - Turret: 200 - 8000 rpm
Main Spindle Indexing: C Axis
Back Spindel Indexing: C Axis (op)
Tooling:
Turret: 12 Stations
Front Post Turning: 4
Front Post Cross Drill: 3
Back Tool Post: 4
Tool Size: 12x12x125mm (turret & tool post)
Rapid Traverse rate:
X1, Y3 12 m/min
Z3 18 m/min
x3 20 m/min
y1, z1, x2, z2 24 m/min
Controlled Axes: 8
Motors
Main Spindle 2.2/3.7 kW
Back Spindle: 2.2/3.7 kW
Coolant Pump: 0.39/.62 kW (50/60Hz)
Rotary Tools - tool post: 1.0 kW
Rotary Tool - Turret: 1.4 kW
Lubrication Oil Pump: 3 W
Net Weight: 4500 kg
Power Source Requirement: 30 kVA
Compressed Air requirement: 0.5 mPa or more
Air Discharge Rate: 100 NL/min
Dimensions: 2480 x 1585 x 1733 mm

Machine: 115" x 66" x 73" 9,920 lbs
Chip/Coolant Pan: 60" x 52" x 12" 350 lbs
Chip Conveyor: 94" x 21" x 72.5" 1,500 lbs
Barfeed: 189" x 24.5" x 47" 837 lbs
Pallet w/tri-mist, misc: 48" x 42.5" x 47.5" 550 lbs
HPC: 48.5" x 30.5" x 46.5" 750 lbs
