TSUGAMI SS32 CNC SWISS LATHE NEW: 2012 | IH 7611755
ConditionUsed
1 available

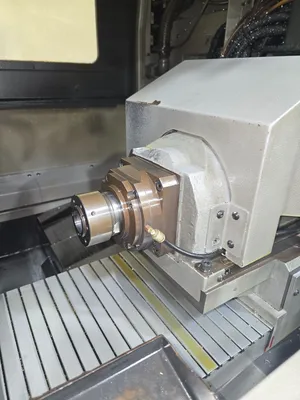

TSUGAMI SS32 CNC Swiss Lathe, 2012 model, in used condition. Features 3.7 power with a max RPM of 8000, ideal for precision machining.
FMB Magazine bar loader 16' x 3' x 5' 3,000 lbs
LNS Chip Conveyor
MP Systems V2-H08 High Pressure Unit 4'x2'x3' 500lbs
Tri Mist 850 Mist Collector
Fire Suppression System
Work Light
Wrenches
Manuals
39818 Hours
CAPACITY 1.26"
POWER 3.7 kW
RPM 8,000 RPM
# AXIS 5
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING Full C
SUB-SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS Yes
CONTROL CNC Fanuc 31i B
DIMENSIONS 79.5" x 65.9" x 79.5"
WEIGHT 7,495
Bar Capacity 32 mm
Max Machining Length 320 mm (12.6")
Max Drilling Diameter 0.47"
Max Tapping Diameter 0.39"
Max Back Spindle Chucking Diameter 1.25"
Max Back Spindle Drilling Diameter 0.39"
Max Back Spindle Tapping Diameter 0.31"
Tool Positions 24 Max
Live Tool Positions 6 Main
4 Sub
Live Tool Speed 5,000 RPM
Spindle Speeds (Main) 8,000 RPM
Spindle Speeds (Sub) 8,000 RPM
Main Spindle Motor 7.4 HP
Back Spindle Motor 5 HP
