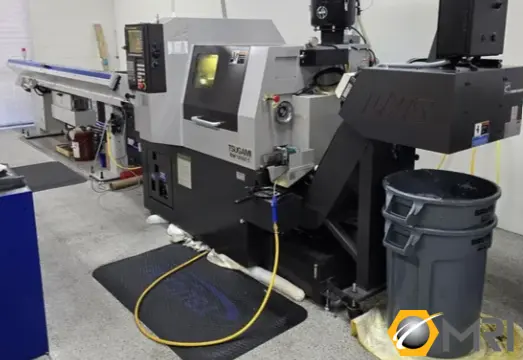

Tsugami BW129Z CNC Swiss Lathe 9 Axis, New in 2020 | IH 7611766

General Specifications:
All Specs and equipped with are to be confirmed and verified by the buyer

Working Barstock Diameter: Ø3 to Ø12 mm (.12 to .5 in.)
Max. Machining Length: 170 mm (6.69 in.) (Direct-drive rotary guide bushing),
45 mm (1.77 in.) (Chucker Mode)
Max. Main Spindle Drilling Diameter: Ø7 (.28 in.)
Max. Main Spindle Tapping Diameter: M6
Main Spindle Through ID: Ø16 mm (.63 in.)
Max. Back Spindle Chucking Diameter: Ø12 mm (.5 in.)
Max. Back Spindle Drilling Diameter: Ø7 mm (.28 in.)
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: M5 x 0.8
Max. Cross Tapping Diameter: M6 (Front tool post/Rear tool post/Back tool post)
Max. Tool Spindle Slotting Cutter Diameter : Ø30 mm (1.18 in.)
Max. Back Drilling Diameter: Ø6 mm
Max. Back Live Tapping Diameter: M5
Main Spindle Speed: 200 to 12,000 rpm
Back Spindle Speed: 200 to 12,000 rpm
Rotary Guide Bushing Speed: 200 to 8,000 min-1: Carrier type rotary guide bushing,
200 to 12,000 min-1: Direct-drive guide bushing
Cross Tool Spindle Speed: 200 to 8,000 rpm min-1
Tool Size: .5 in x .5 in square
(T04, T05, T06, T07, T16, T17, T18)
Rapid Traverse Rate: 32 m/min (Z1, Z2, X2) | 24m/min (Y1, Y3) | 15 m/min (Y2) 12 m/min (X1, X3, Z3)
Controlled Axes (liner axes): 9
Main Spindle: 2/2.95 HP (1.5/2.2kW)
Back Spindle: 2/2.95 HP (1.5/2.2kW)
Axis: 0.67 HP (0.5 kW)
Cross Dill: 1.34 HP (1.0 kW)
Coolant Pump: 1.34 HP (1.0 kW)
Lubricating Oil Pump: 3W

Net Weight: 6,393.4 lbs (2,900 kg)
Power Source Requirement: 14.1 kVA
Compressed Air Requirement: 0.4 Mpa or above
Air Discharge Rate: 50 NL/min
Coolant Tank Capacity: 180 L / 47.5 Gal

Width x Depth x Height 79.13 in. X 59.25 in. X 68.90 in.
(2,010 mm x 1,505 mm x 1,750 mm)
